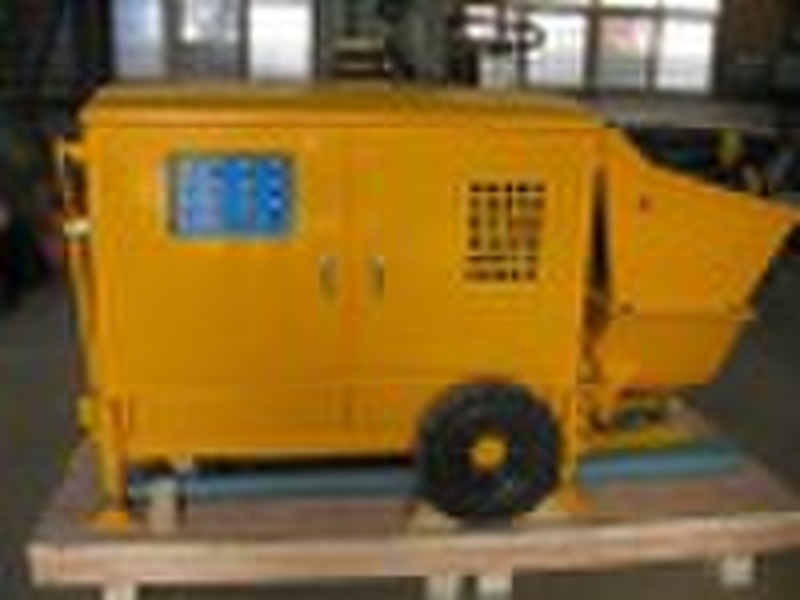

Shotcrete pump

Application: XuDa XBS-7 Wet-mix shotcretepump can be used for the conveying and spraying of wet-mix concrete. Typical applications include permanent and temporary rock support in tunnels and mines, or in fact wherever sprayed concrete is to be applied. It can also for pumping, grouting, repair work, artificial soil seeding, mortar spraying, and refractory material spraying. Being a piston pump it provides much more versatility, in both mix types and potential conveying distances, than a rotor/stator pump of a similar capacity.Pumping of thick and stiff mixes also poses no problem, as the concrete is delivered up to 67 bar. Its compact design enables easy integration into any kind of carrier chassis. Feature: Thick flow conveying method with hand-spraying make the concrete spraying is even, steady with less air consumption comparing to thin flow conveying method.XUDA XBS-7 is a high efficiency machine with a longer conveying distance, horizontal 150m and vertical 70m.PLC control, simple operation is more reliable.Soft-start protects electric system and motor.Two independent oil pressure circuits.Accelerating agent by the hand pump wheel can be adjusted emissions accelerating agent.Double piston pump with S-tube and change-over cylinders for a positive action.Self-sealing, superhard sealing and plate.Automatically reversing pistons relieve the conveying system when blocked.Suitable for steel fiber concrete pumping and injection.Low weight is an advantage for transport.Technical Data: Output 6.5m3/h Delivery Horizontal:150m vertical:70m Pressure 6Mpa Electric motor 380V/50Hz, 15kw Main pump Max.pressure 14Mpa Main pump Max..flow 65M/min Oil tank 90L Work cylinder diameter 1D110mm Work cylinder Stroke 550mm Shape swing tube 110mm Pipe and hose size 1D65/51mm Max. grain size for spraying 15mm Max. grain size for pumping 1/3 pipe ID Dosing pump 17.5-88L/h Weight 1200kg
