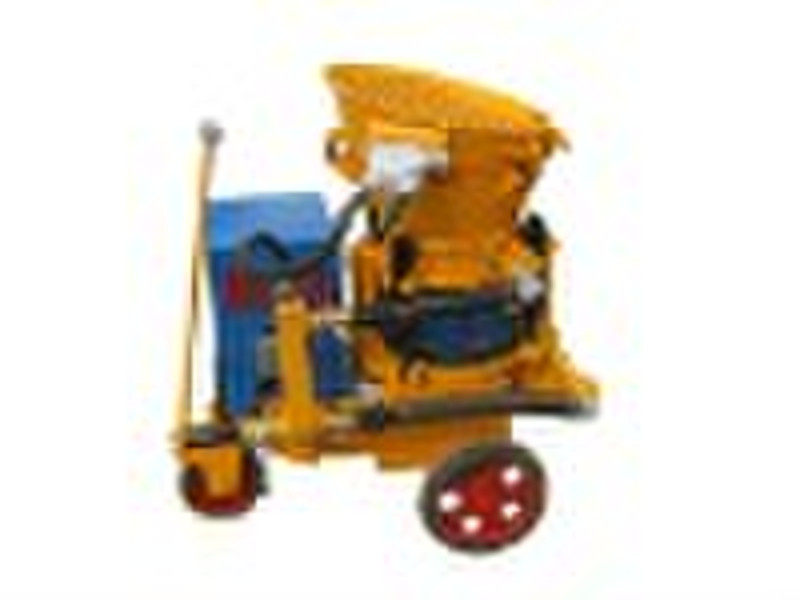

Hot spray machine

Hotspraymachine Applications: 1.PZ-3 Hot spraymachinefor tunnels,hydro-power engineering,mines,underground engineering, civil engineering and slope stabilization,etc. 2. Atificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface. 3.Refractory material spraying and repair for industrial kilns or kilns’s inner liner. Features: Advantages: XuDa dry-mix spraying machine is a high-effective shotcrete machine,which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shocrete quality. Item PZ-3 Output 3m3/h Max. conv. dist 200m Water cement ratio 0.4 Max. Aggregate. size 10mm Hose inner size 42/51mm Operating air pressure 0.2 0.6MPa Air consumption 5 6m3/min Motor power 3kW(4hp) Voltages 380v,440v,660v, 1140v,50HZ/60HZ Basic chassis Basic chassis is type, skid, rail-wheel are optional
