| Place of Origin |
Henan China (Mainland) |
| Brand Name |
XuDa |
| Model Number |
XZ-100D |

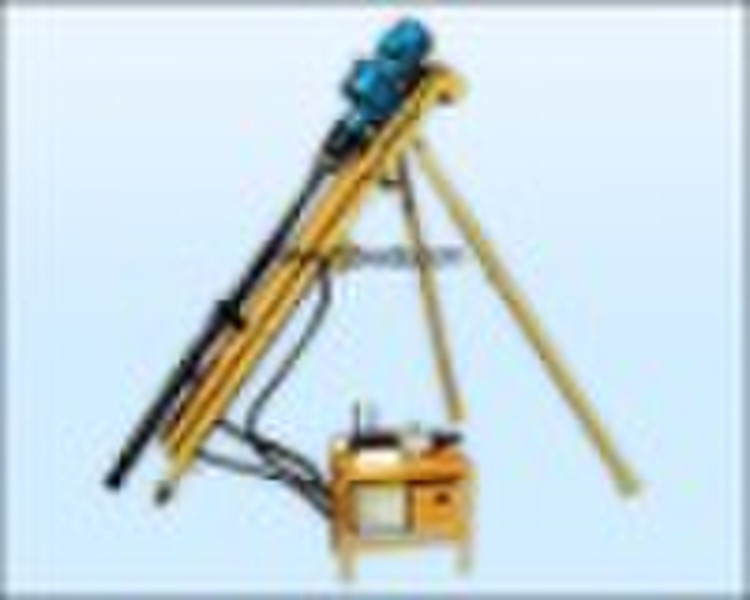

Applications: XZ-100D electric drill is a new, efficient, semi-mechanized and advanced drilling equipment, which has been widely used in road and bridge projects, hydropower development, mining and underground construction industry, a large diameter drill hole, drill yard and laneway and vents so popular species for rock hardness f = 8-14 of hard rock, the hard rock. Features: It has lots of advantages,such as simple structure, using portable, auxiliary time is short, light weight, high efficiency. Technical Data: Borehole diameter 80-130mm Rock types of adaptation Rock, hard rock, f=8-16 Bore depth 60m(Down to 20 meters) Drill rotation speed 90r/min Air pressure 0.5-0.7Mpa Air consumption 6m³/min Water Pressure 0.8-1.0MPa Water consumption 8-12L/min Drilling speed (f=8-12)100-200mm/min Motor Model Y112M-4 Power 4kw Voltage 380V Rorate speed 1440r/min Dimension 2420X440X300mm Weight 257kg Stand down range 2135-3235mm
